Nozzle (3/8/99)

280x280x280

3862100 elements , 3997514 nodes , 11992542 DOFs, 8-node linear hexahedral element
Part = 20, Each part contains 600 subdomains (total 12000 subdomains)

（V280_nozzle.adv）

SR2201, 1024 PEs
Computation time : 3393 sec （Including IO time）

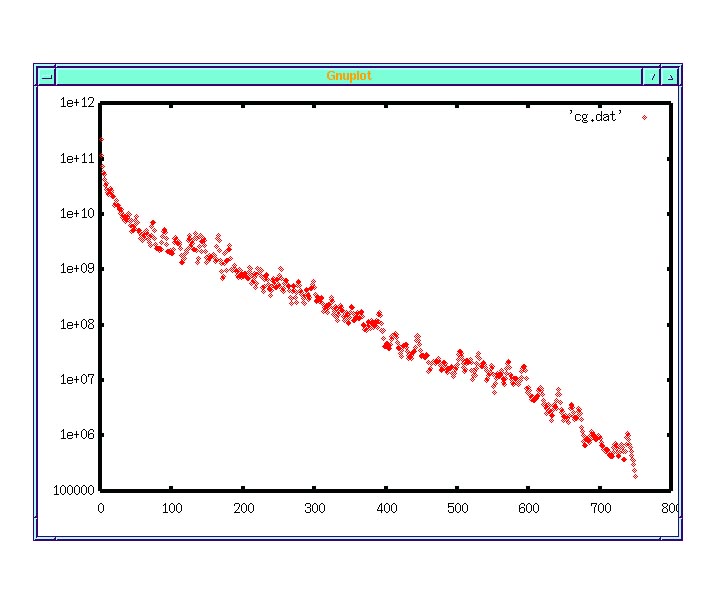

Convergence of CG (1->1.e-6)

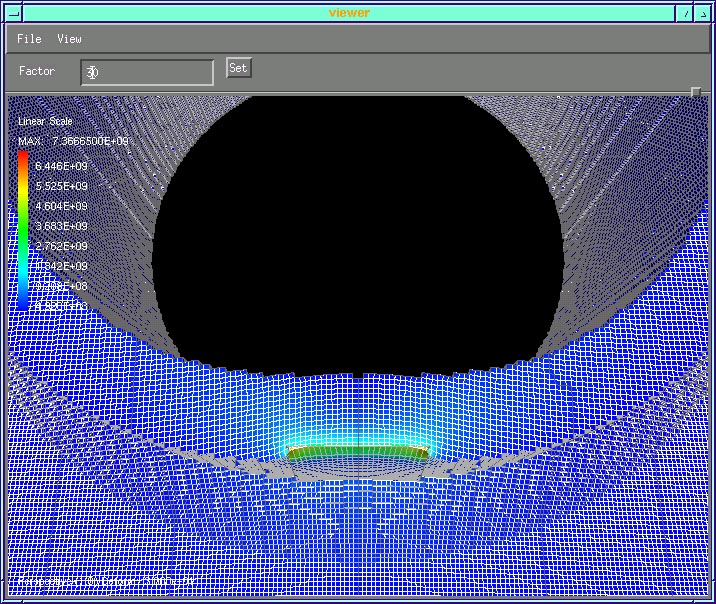

Equivalent stresses and deformation


Update 3/8/99
